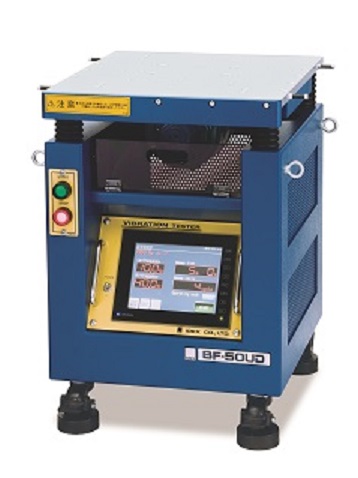

BF-50UD
Apply to vibration test for electronics with biaxial vibration 2-axis vibration
Specification
- Vibration direction
- Up/down, right/left (2-axis simultaneous vibraiton)
- Adjustable displacement range
- 0.2 - 3.0mmP-P
- Vibration table
- 450 x 516mm
- Frequency range
- 10 - 67Hz (0.1Hz unit)
- Acceptable acceleration range
- 98m/s² (10G)
- Maximum loading weight
- 50kg
- Operation mode
- MANUAL / RANDOM / SWEEP / MANUAL ROTATION
- Temperature
- 0 - 40℃ (No condensation)
- Power source
- AC200 - 240V 3phase 50/60Hz 4A or below
- Dimensions & weight
- 450(W) x 516(D) x 650(H)mm / approx. 77kg
