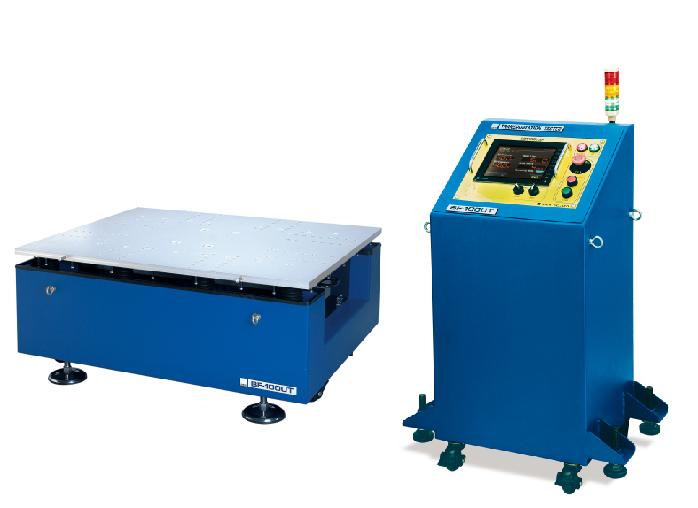

BF-100UT
All-inclusive model for large equipment apply to transportation test featuring triaxial simultaneous vibration
Specification
- Vibration direction
- Up/down, right/left, front/rear (3-axis simultaneous vibration)
- Adjustable displacement range
- 0.4 - 2.5mmP-P
- Vibration table
- 1000 x 800mm with L type jig
- Frequency range
- 10 - 50Hz (0.1Hz unit)
- Acceptable acceleration range
- 49m/s² (5G)
- Maximum loading weight
- 120kg
- Operation mode
- MANUAL / RANDOM / SWEEP / TRANSPORTATION
- Temperature
- 0 - 40℃ (No condensation)
- Air source
- 0.4 - 0.6MPa (4～6kgf/cm²) (*1)
- Power source
- AC200 - 240V 3phase 50/60Hz 2A or below
- Dimensions & weight
- Vibration unit: 1000(W) x 800(D) x 445(H)mm / approx. 180kg
Control unit: 650(W) x 460(D) x 900(H)mm / approx. 60kg
* Height of a signal tower is not included - Standard accessory
- 3-Dimensional Wireless Vibration Recorder / 1 set
* PC not included.
