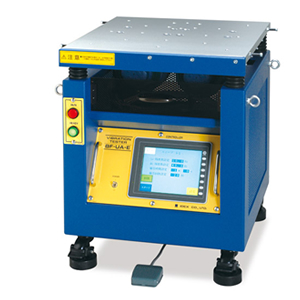

BF-45UA-E
Apply to vibration test featuring vertical vibration
Specification
- Vibration direction
- Up/down
- Adjustable displacement range
- 1.2 - 3.5mmP-P
- Vibration table
- 530 x 582mm
- Frequency range
- 10 - 67Hz (0.1Hz unit)
- Acceptable acceleration range
- 98m/s² (10G)
- Maximum loading weight
- 45kg
- Operation mode
- MANUAL / RANDOM / SWEEP
- Temperature
- 0 - 40℃ (No condensation)
- Power source
- AC200 - 240V 3phase 50/60Hz 4A or below
- Dimensions & weight
- 530(W) x 582(D) x 650(H)mm / approx. 105kg
