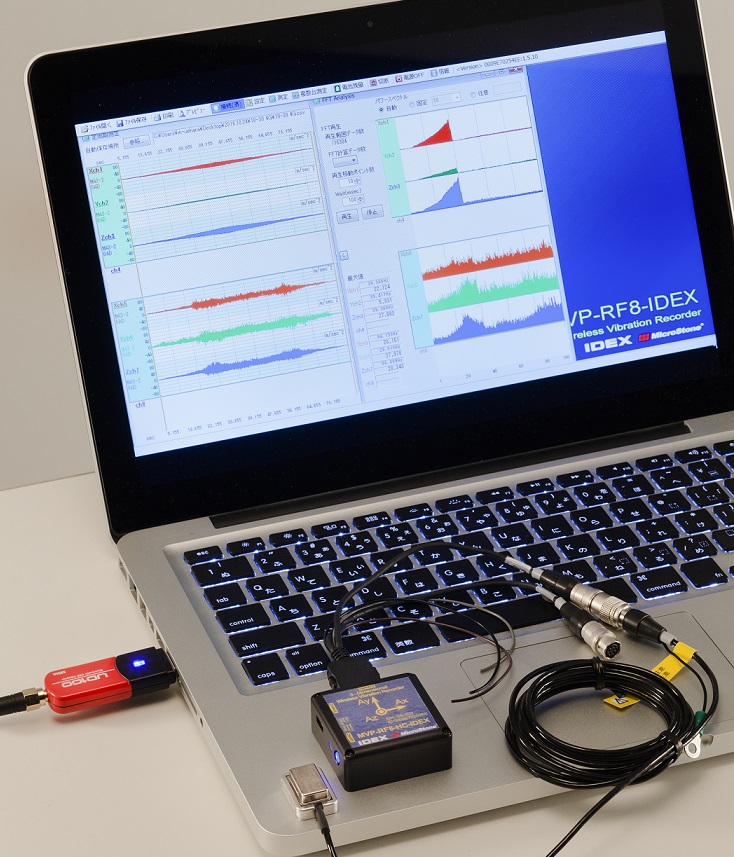

3-Dimentional Wireless Vibration Recorder
Measure vibration data using a sensor and study vibration property by performing FFT analysis.
Procedure for analyzing
Specification
- Measuring method
- Triaxial piezoelectric acceleration sensor
- Sensor
- MA3-20AD [for vibration] / MA3-100AD [for shock]
- Detection range
- ±98m/s²(10G) [for vibration] / ±490m/s2(50G) [for shock]
- Measurement interval
- 1, 2, 5, 10, 20, 100ms
- Communication protocal
- Bluetooth (USB)
- Communication speed
- 115200bps
- Communication range
- Within 10m
- Dimension
- W115 x D58 x H18.5mm
- Weight
- 90g
