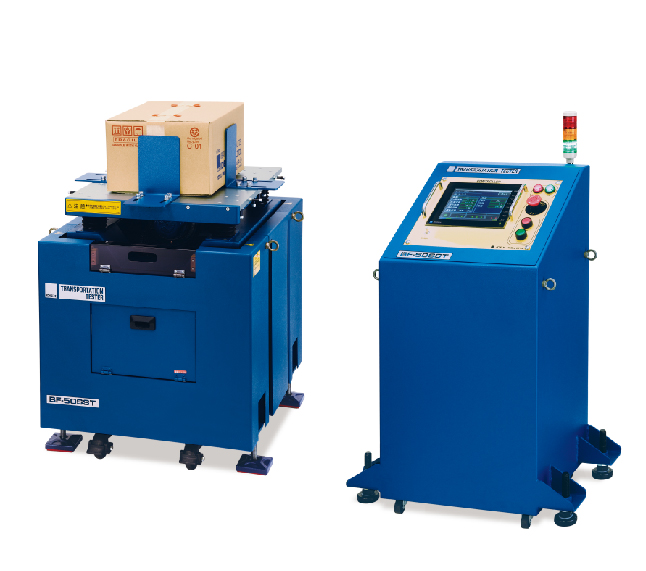

BF-50SST
New innovative TRANSPORTATION TESTER "Triaxial Simultaneous Vibration" + "Shock"!
Cargo during transportation is not only vibrations, many factors also occurs such as shock, drive over a curb and bumpy road.
BF-50SST enables to generate “vibration”and”shock”; simultaneously during transportation by a truck.
This made reproducibility has greatly improved.
Resonance points detection / Packaging design checking
Specification
- Vibration direction
- Up/down, right/left, front/rear (triaxial simultaneous vibration)
- Adjustable displacement range
- 0.2～2.6mmP-P
- Vibration table
- 500 x 600mm with L type jig
- Frequency range
- 10 - 67Hz (0.1Hz unit)
- Acceptable acceleration range
- 98m/s² (10G)
- Maximum loading weight
- 50kg
- Operation mode
- Vibration: MANUAL / SWEEP / TRANSPORTATION / COMBINATION

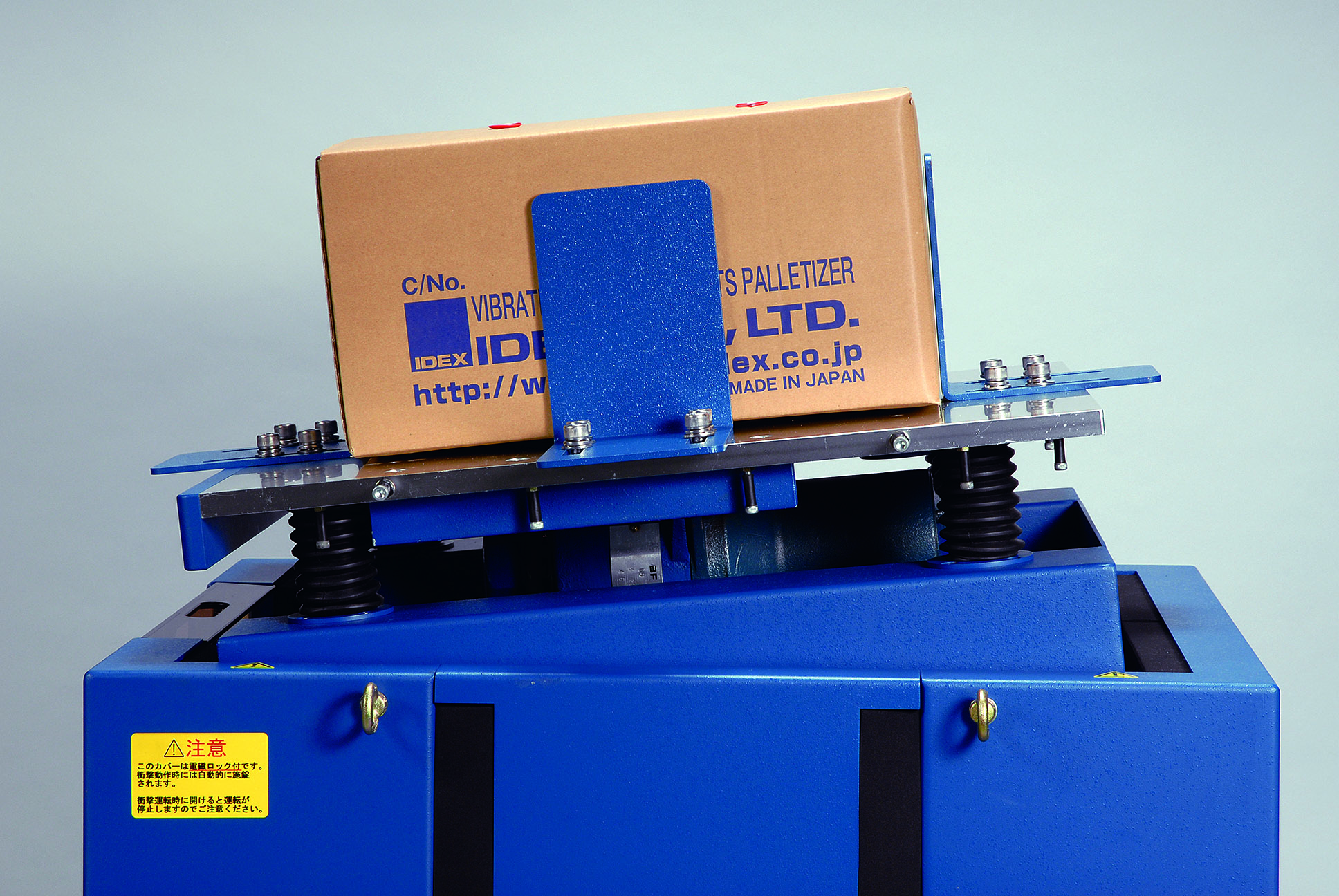

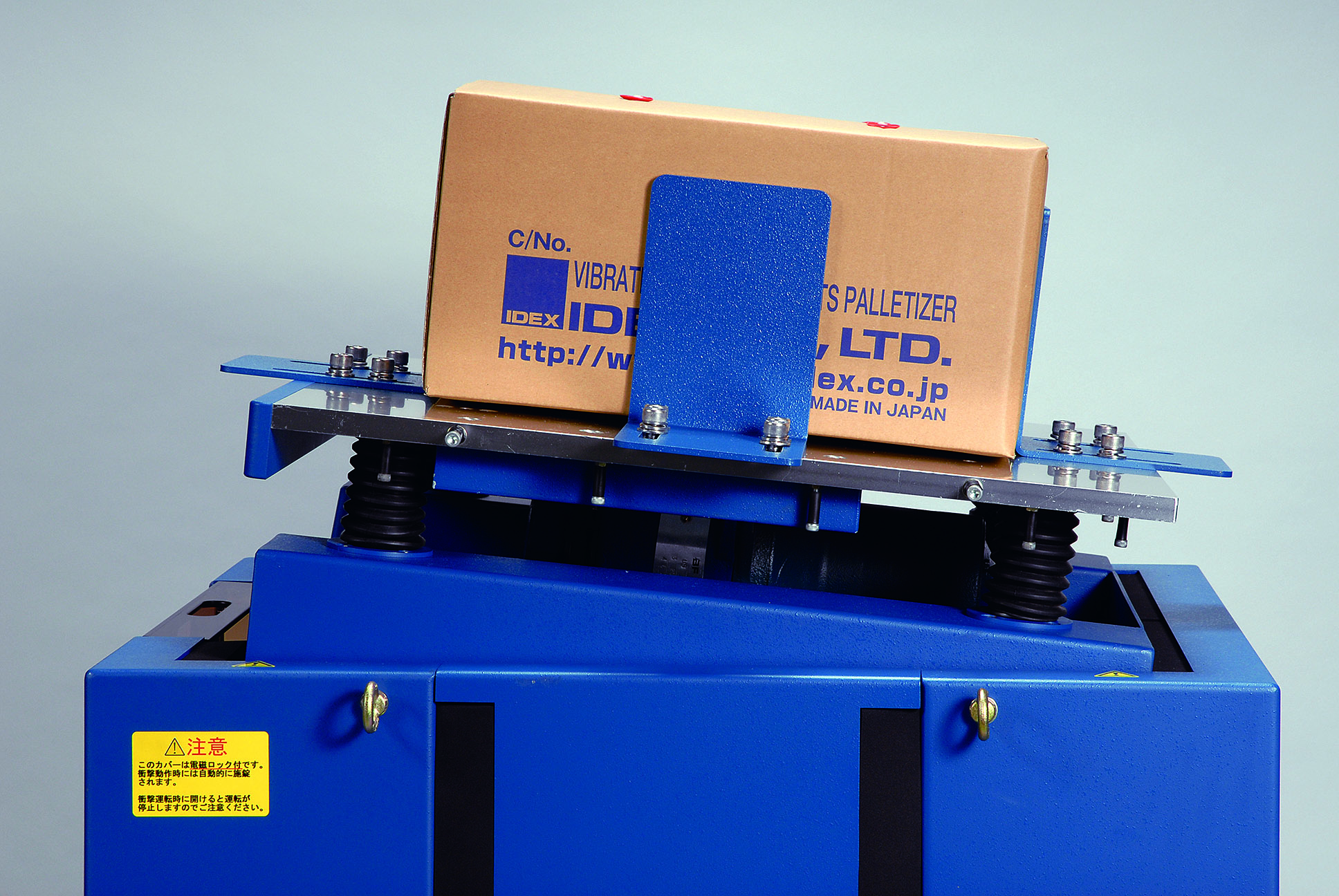

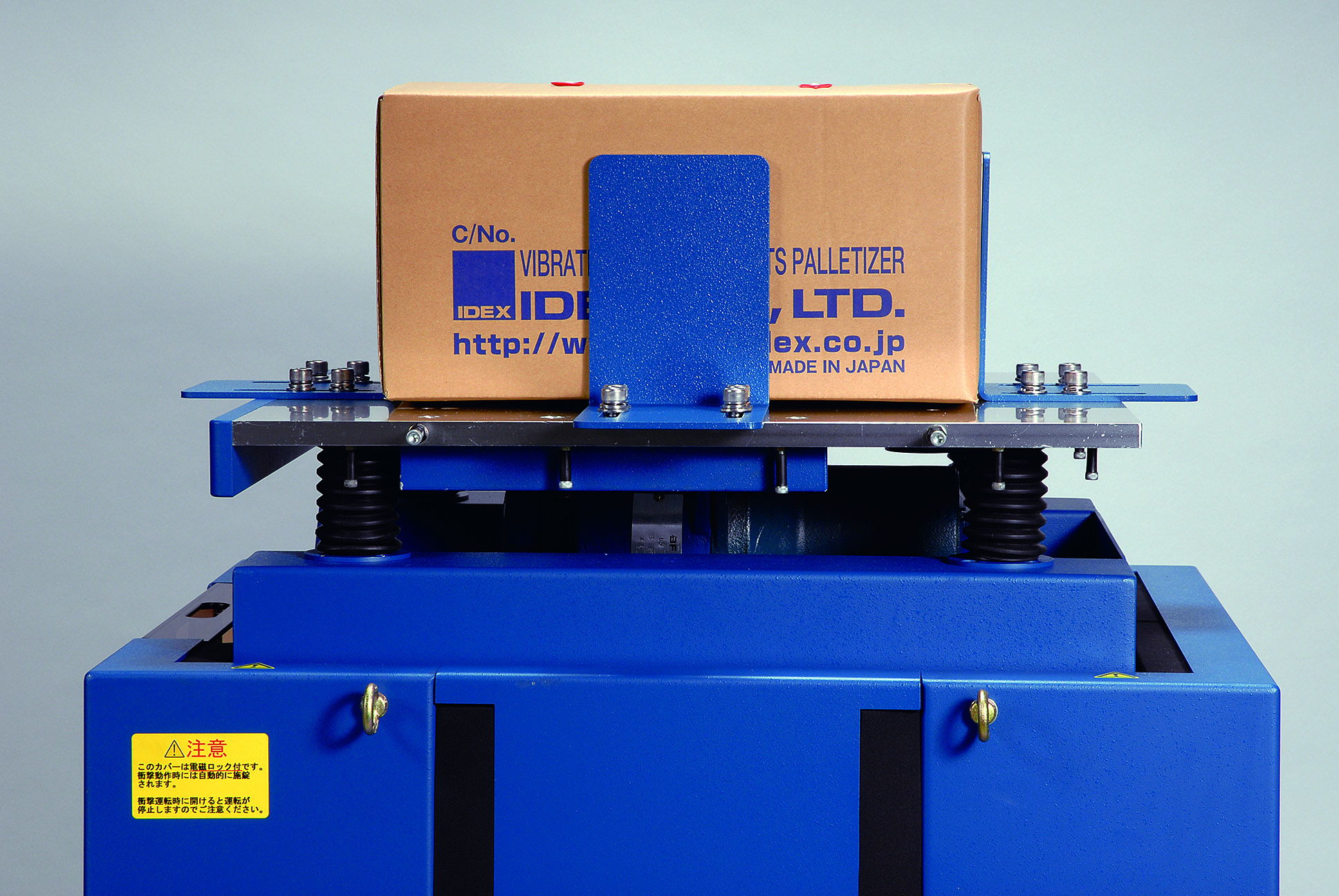

Shock: Front / Back / Vertical / Front＆Back / Mix - Shock amount setting
- Adjustable by positioner
- Shock cycle setting
- Adjustable at intervals of 6 seconds or longer
- Temperature
- 0 - 40℃ (No condensation)
- Power source
- AC200 - 240V 3phase 50/60Hz 5A or below
- Dimensions & weight
- Vibration unit : 610(W) x 760(D) x 740(H)mm, approx. 270kg
Control unit : 650(W) x 460(D) x 900(H)mm, approx. 65kg
* Height of a pilot lamp is not included. - Standard accessory
- 3-Dimensional Wireless Vibration Recorder / 1 set
* PC not included.
