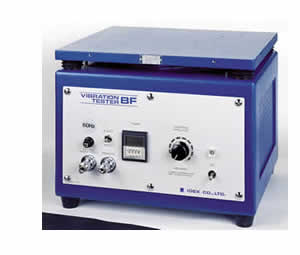

BF-25H-100/200
Compact and light desktop type
Specification
- Vibration direction
- Up/down
- Adjustable displacement range
- 0 - 1.5mmP-P
- Vibration table
- 400 x 350mm
- Frequency range
- Fixed frequency type (50 or 60Hz)
- Acceptable acceleration range
- 50Hz type : 73.5m/s² (7.5G)
60Hz type : 98m/s² (10G) - Maximum loading weight
- 25kg
- Operation mode
- Timer, continuous operation
- Temperature
- 0 - 50℃ (No condensation)
- Power source
- AC100V 50 or 60Hz (*)
AC200V 50 or 60Hz (*) - Dimensions & weight
- 400(W) x 373(D) x 310(H)mm / approx. 30kg
