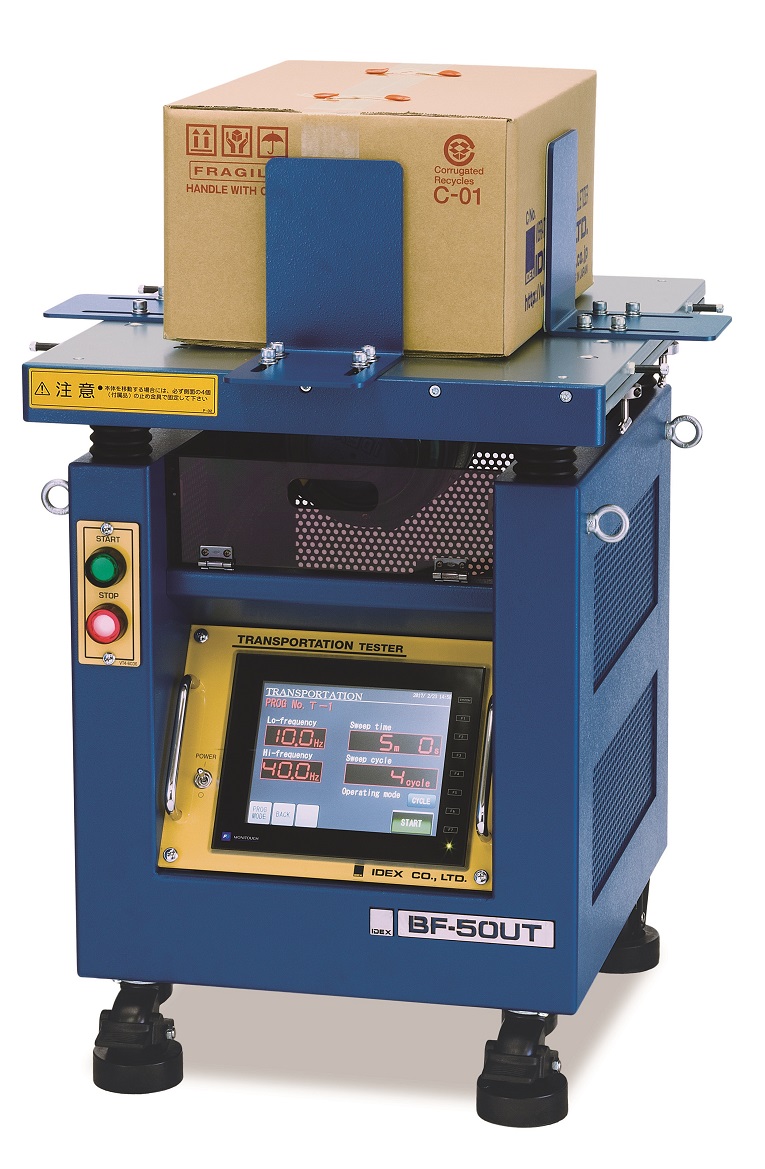

BF-50UT

All-inclusive model apply to transportation test featuring triaxial simultaneous vibration

· Triaxial simultaneous vibration
· Reproduction of right-left turn by a truck!
· Up to 50kg load capacity

Download the Catalogues

Specification

Vibration direction
Up/down, right/left, front/rear (3-axis simultaneous vibration)
Adjustable displacement range
0.2 - 2.0mmP-P
Vibration table
500 x 600mm with L type jig
Frequency range
10 - 67Hz (0.1Hz unit)
Acceptable acceleration range
98m/s² (10G)
Maximum loading weight
50kg
Operation mode
MANUAL / RANDOM / SWEEP / TRANSPORTATION
Temperature
0 - 40℃ (No condensation)
Power source
AC200 - 240V 3phase 50/60Hz 2A or below
Dimensions & weight
500(W) x 600(D) x 650(H)mm / approx. 80kg
Standard accessory
3-Dimensional Wireless Vibration Recorder / 1 set
* PC not included.
