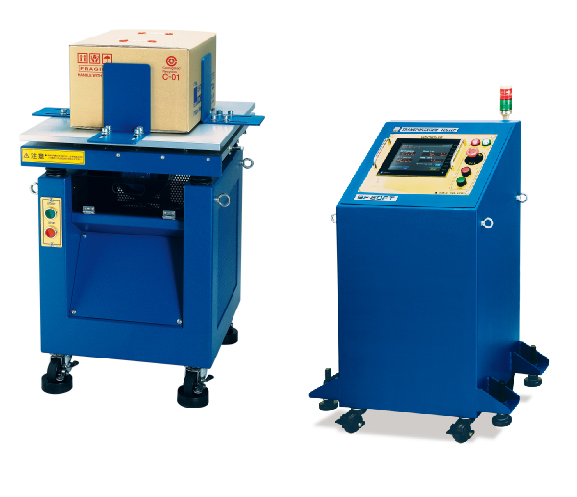

BF-50FT

Low/high temperature version apply to transportation test featuring triaxial simultaneous vibration

· Triaxial simultaneous vibration
· Wide temperature range: -30℃~+60℃

Download the Catalogues

Specification

Vibration direction
Up/down, right/left, front/rear (3-axis simultaneous vibration)
Adjustable displacement range
0.2 - 2.0mmP-P
Vibration table
500 x 600mm with L type jig
Frequency range
Normal temperature: 10 - 67Hz (0.1Hz unit)
Below zero temperature: 10 - 40Hz (0.1Hz unit)
Acceptable acceleration range
98m/s² (10G)
Maximum loading weight
50kg
Operation mode
MANUAL / RANDOM / SWEEP / TRANSPORTATION
Temperature
Vibration unit: -30℃ - +60℃
Control unit: 0 - 40℃ (No condensation)
Power source
AC200 - 240V 3phase 50/60Hz 2A or below
Dimensions & weight
Vibration unit: 500(W) x 600(D) x 670(H)mm / approx. 85kg
Control unit: 650(W) x 460(D) x 900(H)mm / approx. 60kg
* Height of a signal tower is not included
Standard accessory
3-Dimensional Wireless Vibration Recorder / 1 set
* PC not included.
